xiamen ZONEWU The LoRaWAN Formaldehyde (CH2O) sensor is a wireless Internet of Things gas monitoring device that can collect, monitor, and transmit data. It uses a three-electrode electrochemical gas sensor and a high-performance chip to detect formaldehyde in the environment, and also has a built-in temperature and humidity sensor that can measure both temperature and humidity at the same time. This device has high sensitivity and resolution, small size, low power consumption, stable performance, and is not easily interfered with.
Product Model :
LW310-CH2OPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
120gEnvironmental LoRaWAN Formaldehyde (CH2O) Sensor
xiamen ZONEWU The LoRaWAN Formaldehyde (CH2O) sensor is a wireless gas monitoring device developed based on LoRa wireless communication technology.

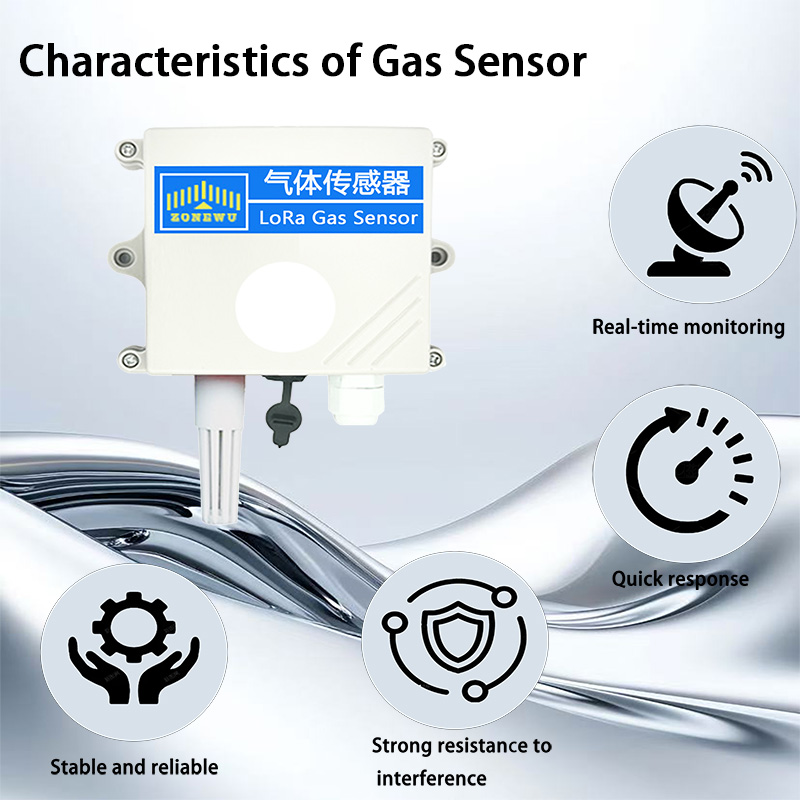

xiamen ZoneWu LoRaWAN Gas Sensor CH2O Sensor Features:
It can monitor the concentration of formaldehyde, temperature, and humidity in the environment in real time, and transmit the data wirelessly.
It is equipped with a high-precision formaldehyde detection sensor and a temperature and humidity sensor, paired with a LoRa wireless communication module.
The detection accuracy is high, the performance is stable for a long time, the power consumption is low, and it is suitable for continuous work for a long time.
It supports the standard LoRaWAN protocol, has a long communication distance, and is suitable for data transmission in a wide range or complex environment.
Its compact size and low power consumption make it suitable for deployment in various scenarios, and it can be powered by batteries for a long time.
It is widely used in industrial fields, such as furniture factories, chemical factories, chemical warehouses, laboratories, paint and coating factories, and other places that need to monitor formaldehyde.
Technical Parameters
| Power Supply | 5~28VDC |
| Weight | 120g |
| Operating Temperature | -20℃～60℃ |
| Measuring Principle | Electrochemistry |
| Lifespan | <2 years |
| Measuring Range |
CH2O:(0-20) ppm
Temp:-40~+80 ℃
Humi:0~99.9 %RH
|
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/
KR920/AS923-1&2&3&4
|
| Mode | OTAA Class A/C(Default: Class C) |
| Reporting cycle |
External power supply:5min(Default reporting cycle)
Report after preheating for 3 minutes when powered on
|
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
|
Equipment information
(Reference)
|
AppEUI：0000000000000001
DevEUI：aaaa202404150001
AppKey：00001111222233334444555566667777
MAC Version：LoRaWAN 1.0.3
|
Product Applications
1. Sensitivity can detect low concentrations: This sensor has "good eyesight" and is particularly sensitive to formaldehyde. Even if the formaldehyde concentration in the air is very low, it can accurately measure it and will not miss the inspection.
2. Real-time updates without delay: It can "watch" the change of formaldehyde concentration and tell you the latest data at any time, just like a live broadcast, so that you can immediately know whether the formaldehyde in the environment is over the limit or not.
3. Accurate measurement and small error: Some models use imported core detection parts, such as "high-precision ruler," and the measured formaldehyde value is very accurate, with almost no error, so don't worry about data deception.
4. It can remember data and "deliver messages": It comes with a "small ledger" that can record long-term changes in formaldehyde concentration; It can also "tell" the computer or mobile phone through wireless signals, which is convenient for you to analyze the change law of formaldehyde.
5. Energy-saving, durable, and cost-effective: In terms of design, it is very "electricity-saving". It can be used for a long time after charging once or replacing the battery. It does not need to be charged frequently, and it is not easy to break down. It can help you save money in the long run.
6. Strong anti-interference ability: If there are other interfering gases in the environment (such as smoke and odors), it can "stay stable" and not be affected, always focusing on measuring formaldehyde to ensure reliable data.

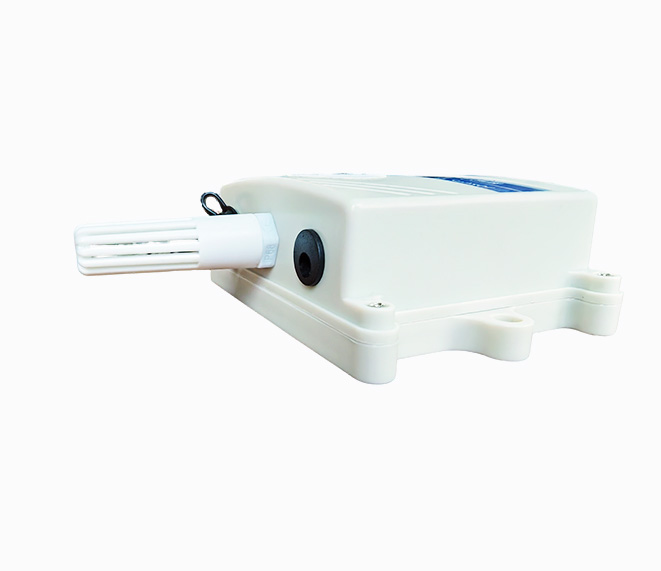

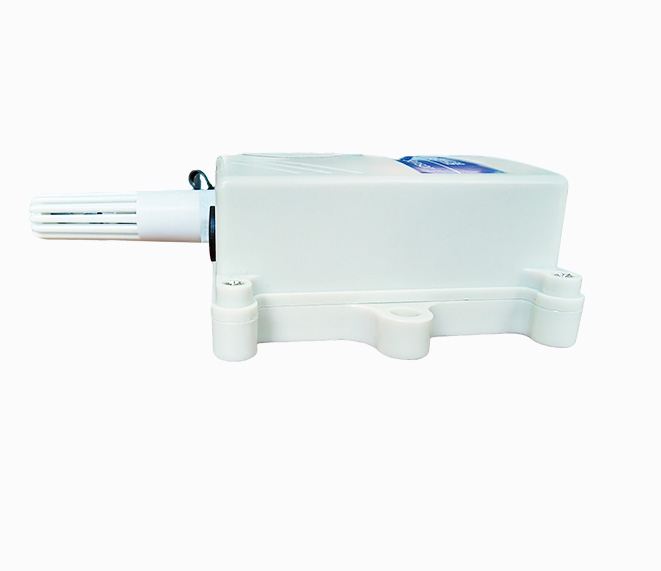

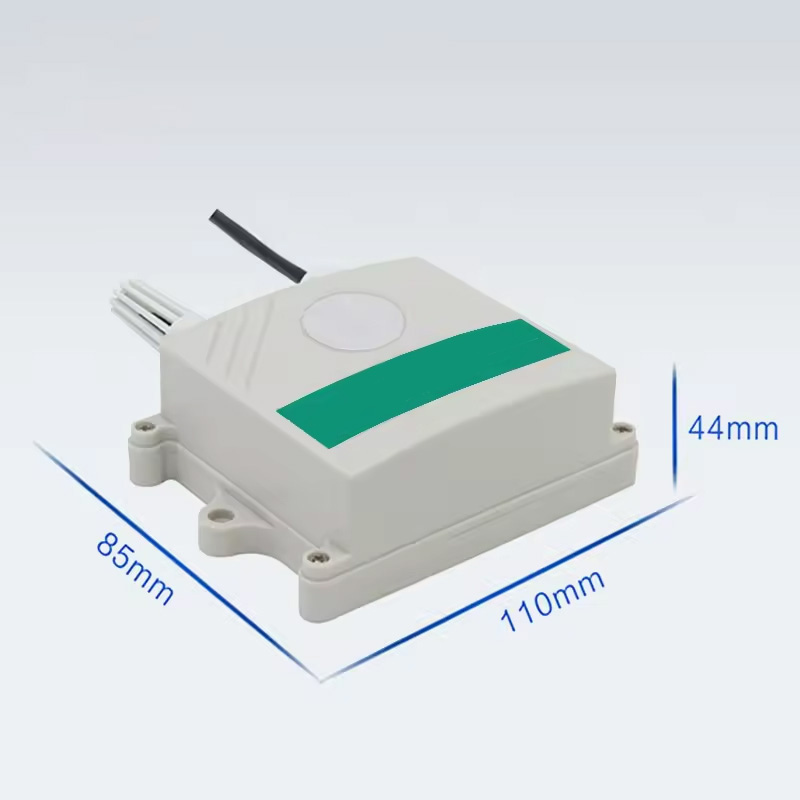

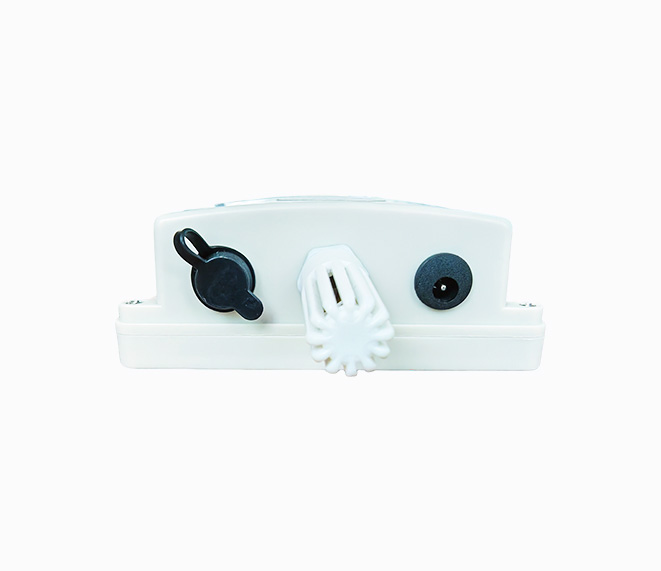

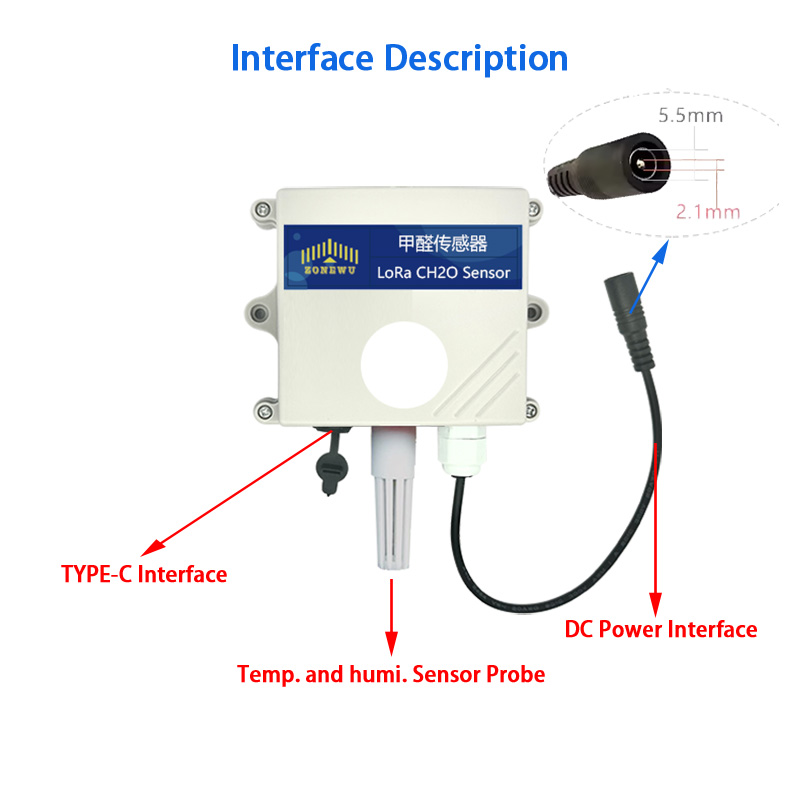

Detailed Images
Common knowledge of CH2O
What is formaldehyde
Formaldehyde is a colorless, irritating-smelling gas with the chemical formula HCHO. It is often used in the manufacture of furniture, plywood, glue, paint, etc. It is a common indoor air pollutant. Long-term exposure to high concentrations of formaldehyde may irritate the respiratory tract and skin, and even affect health.
What are the harms of formaldehyde to the human body
Low concentration of formaldehyde may cause eye irritation, nasal congestion, cough and other discomfort; High-concentration contact may cause breathing difficulties and allergic dermatitis, and long-term exposure may increase the risk of nasopharyngeal cancer, leukemia, etc., especially harming sensitive groups such as children and pregnant women.
How to reduce indoor formaldehyde pollution
Formaldehyde pollution can be reduced in the following ways:
· Ventilation: Keep windows open for a long time after decoration to accelerate the evaporation of formaldehyde.
· Choose eco-friendly materials: When purchasing furniture and decoration materials, look for eco-friendly standards with low formaldehyde release (such as E0 grade).
· Use purification equipment: install air purifiers (with activated carbon or photocatalytic function) and place adsorbent plants such as maidenhair ferns to assist purification.
· Professional treatment: Please have a professional organization test and treat indoor air (such as formaldehyde remover, sealing agent, etc.).
Application Scenarios
Industrial production
Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.
Environmental inspection
Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.
Safety protection
In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.
